650b Light Touring Bike (SOLD)

SoldJoseph AhearneComment

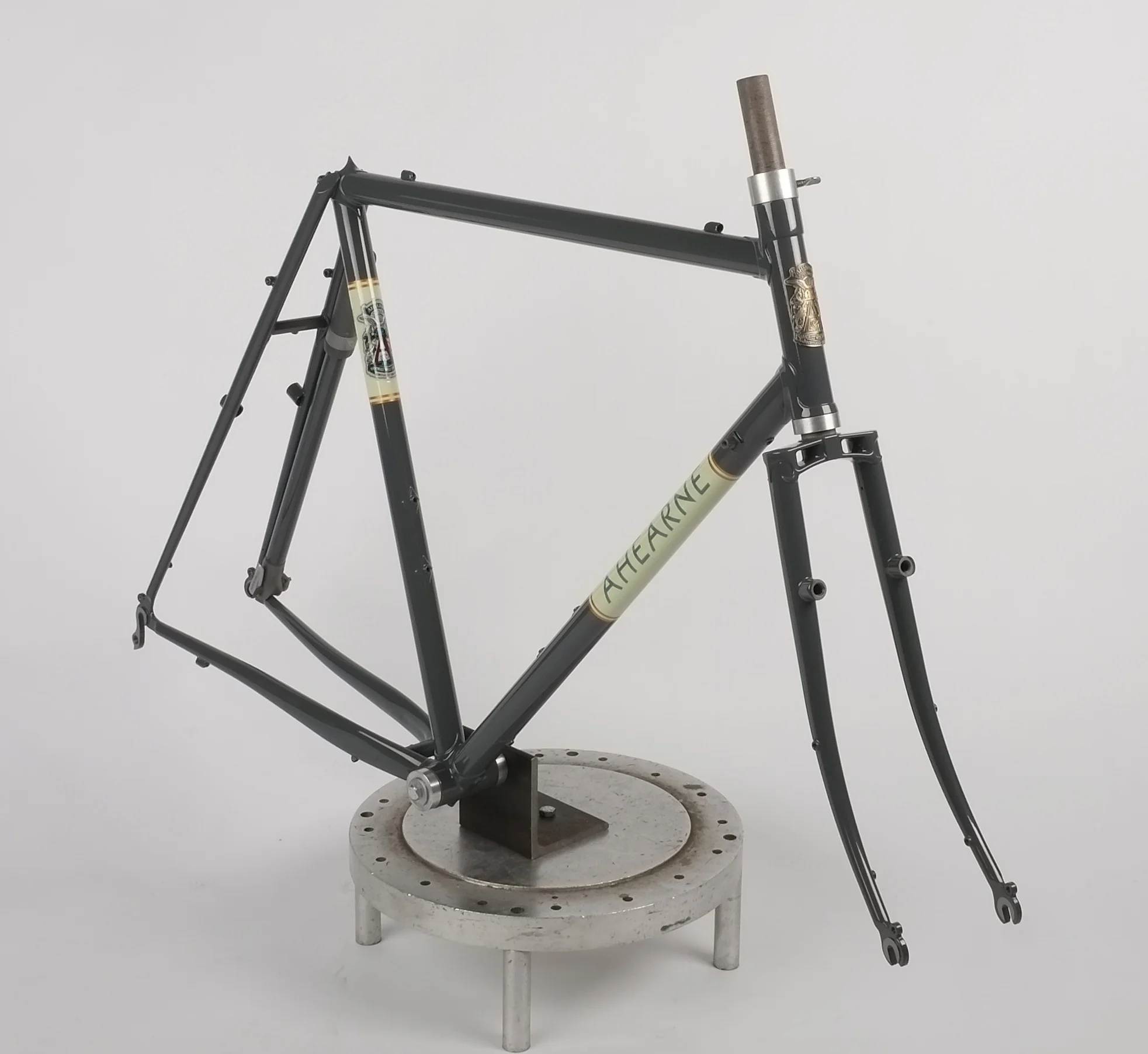

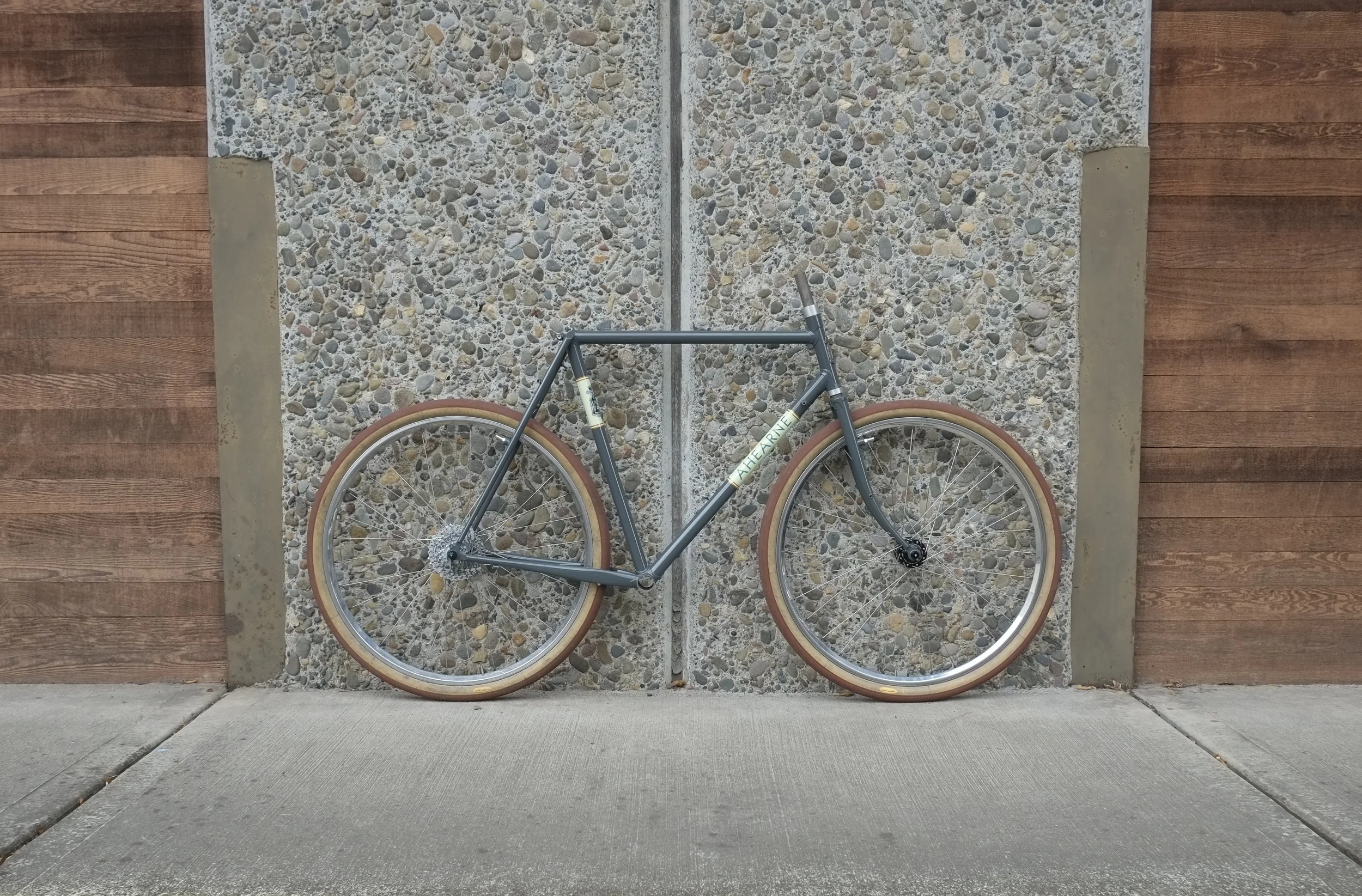

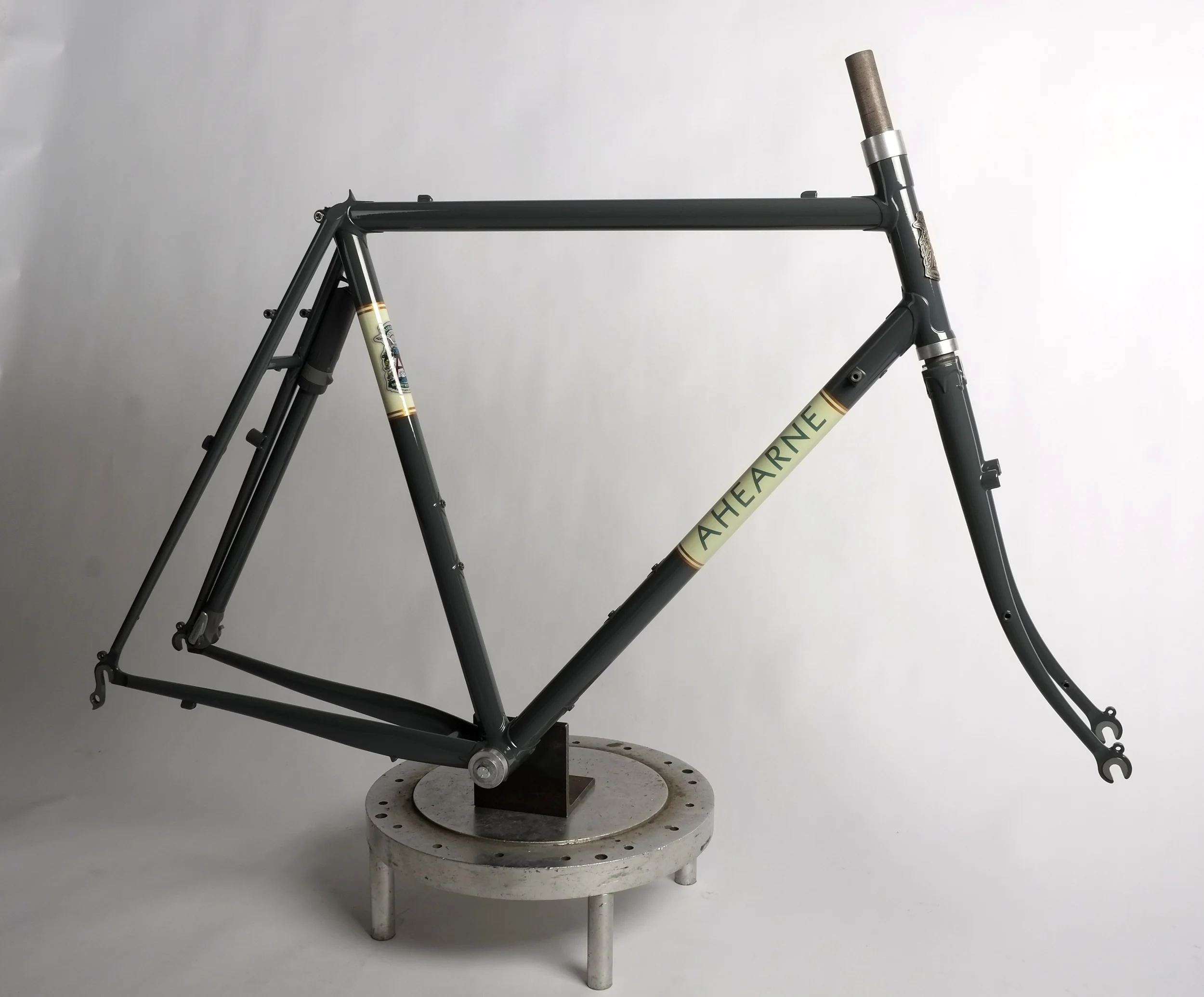

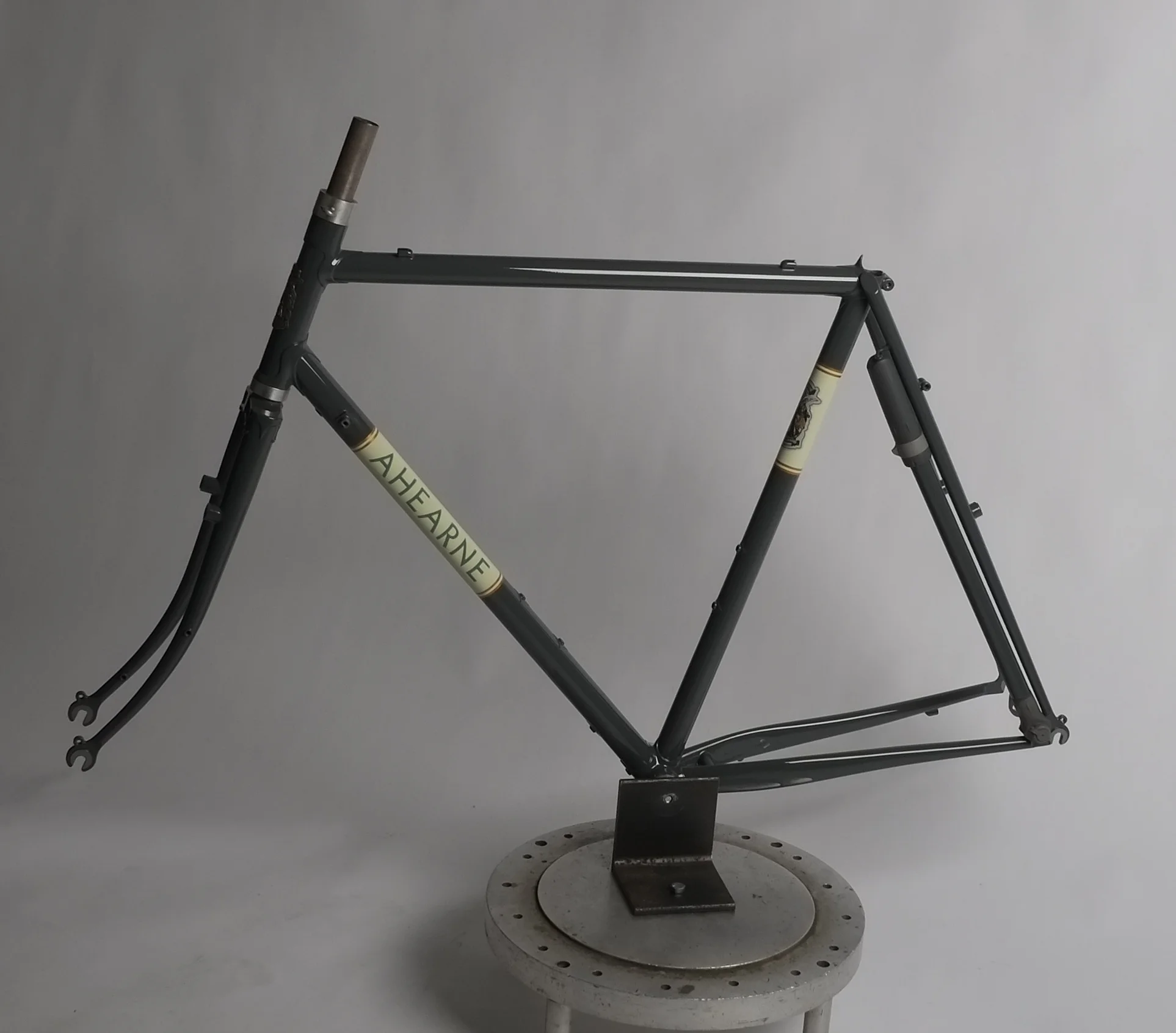

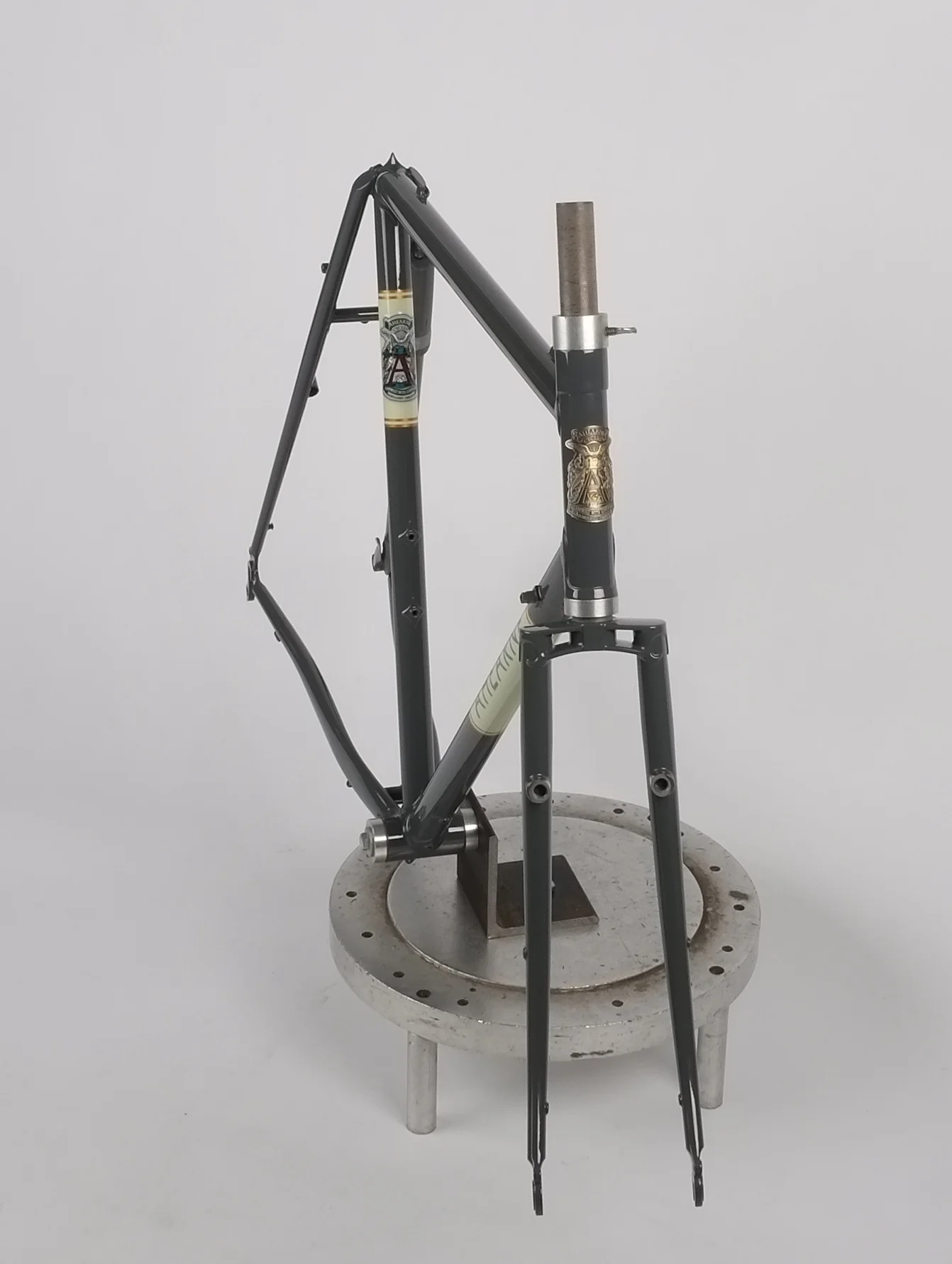

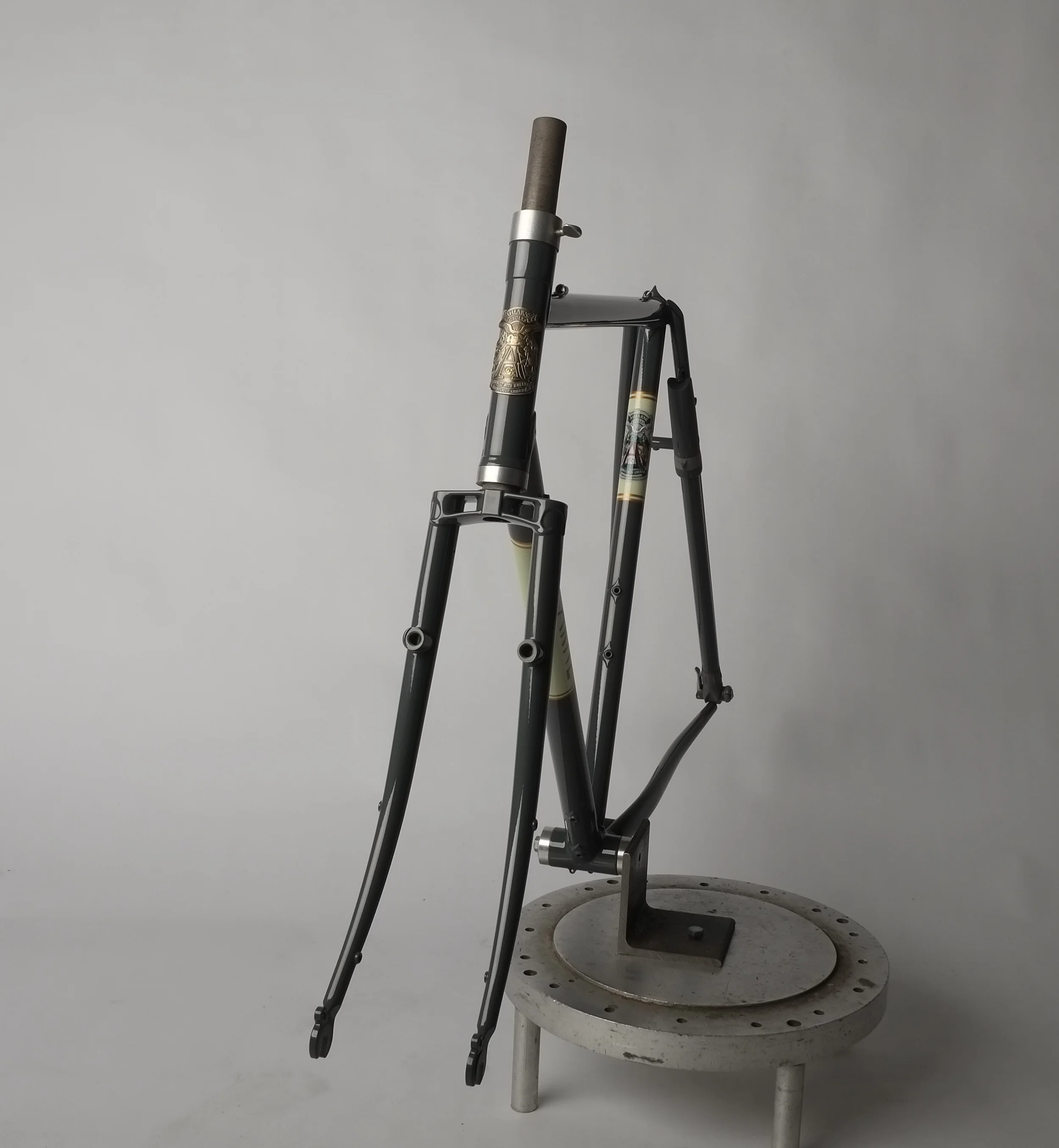

650b Light Touring Bike, lugged steel

Frame, Fork & Pump: $3165 (or make an offer)

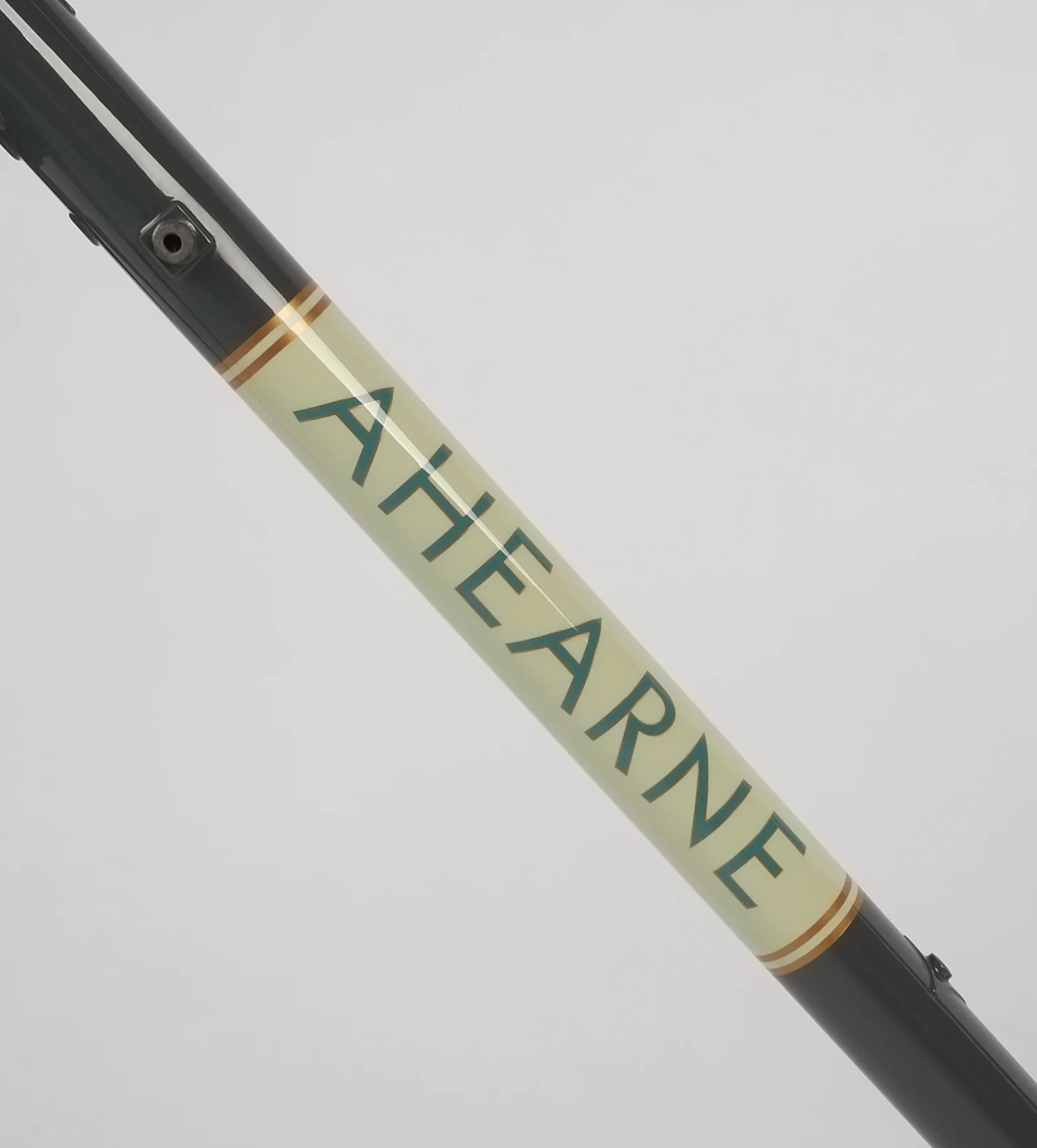

This is a gorgeous 650b Light Touring/ Rando Bike. It boasts Henry James lugs which have been nicely thinned, Columbus tubing, and has clearance for 650 X 42 (about 1.7") tires and fenders. Without fenders the bike will easily hold a 1.9" tire. There are openings to route generator light wiring internally through the frame. The pump mounts to the inside of the non-drive seat stay. The powder coat is Slate Gray, and has Ivory White panels on the down and seat tubes. It's a very classy and understated frame meant to be comfortable on longer outings, and is meant to go where the roads are not always smooth.

This frame is brand new and has never been built up with components. We would be happy to work with you to choose parts and to assemble the bike. Send inquiries to info(at)ahearnecycles.com

All specs to follow:

TT length: 54 cm, horizontal, 28.6 mm diameter

ST length: 56 cm, 73 degrees, 28.6 mm diameter, fits a 27.2 mm seat post

Head Tube Angle: 73 degrees, length: 165 mm (including 20 mm extension), 31.8 mm diameter

BB drop: 65 mm

CS length: 420 mm

Fork length: 385 mm axle to crown, rake: 60 mm, trail: 41 mm

Down tube diameter: 31.8 mm

Rear axle spacing: 130 mm

3 sets of water bottle bosses
