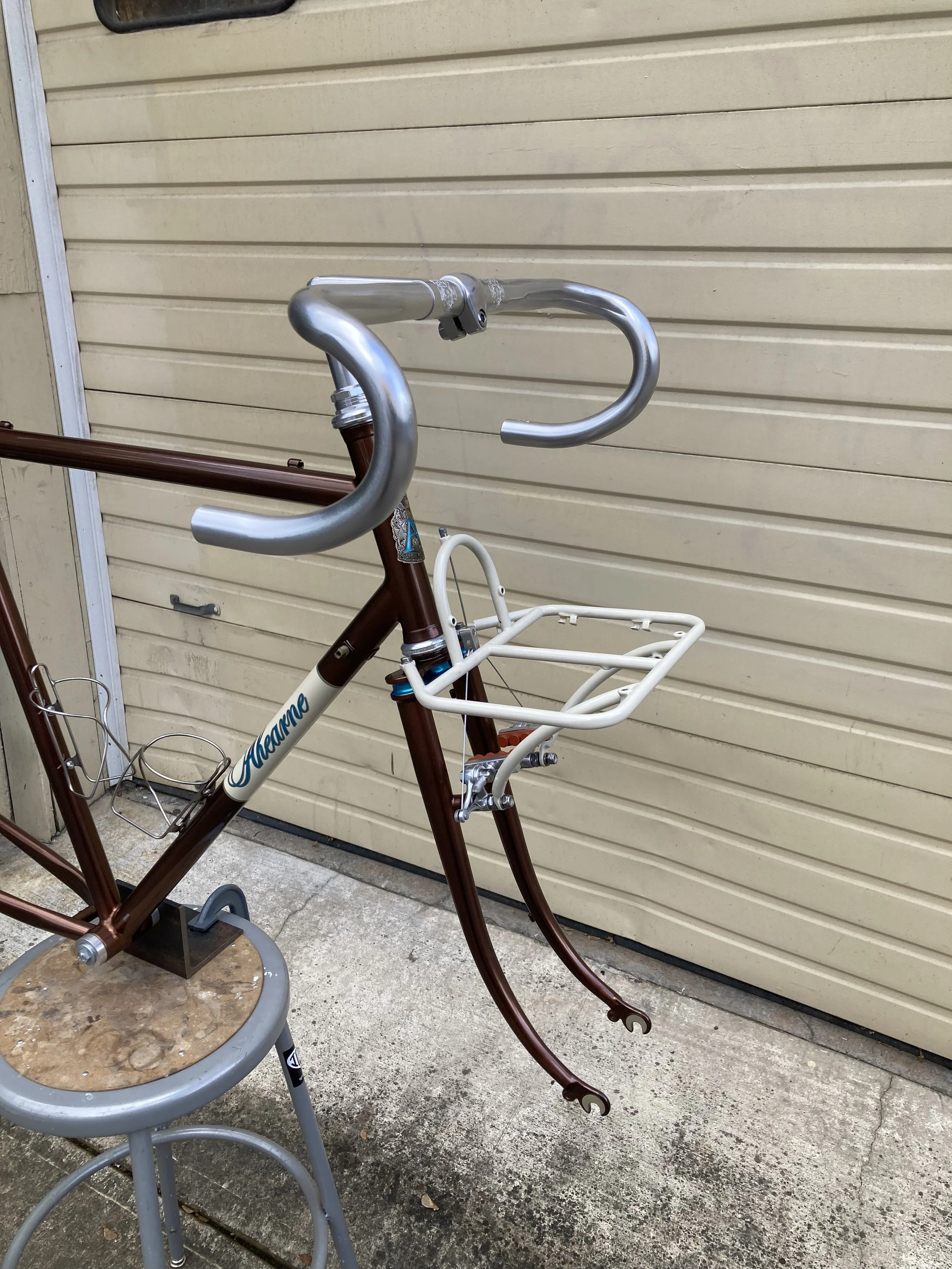

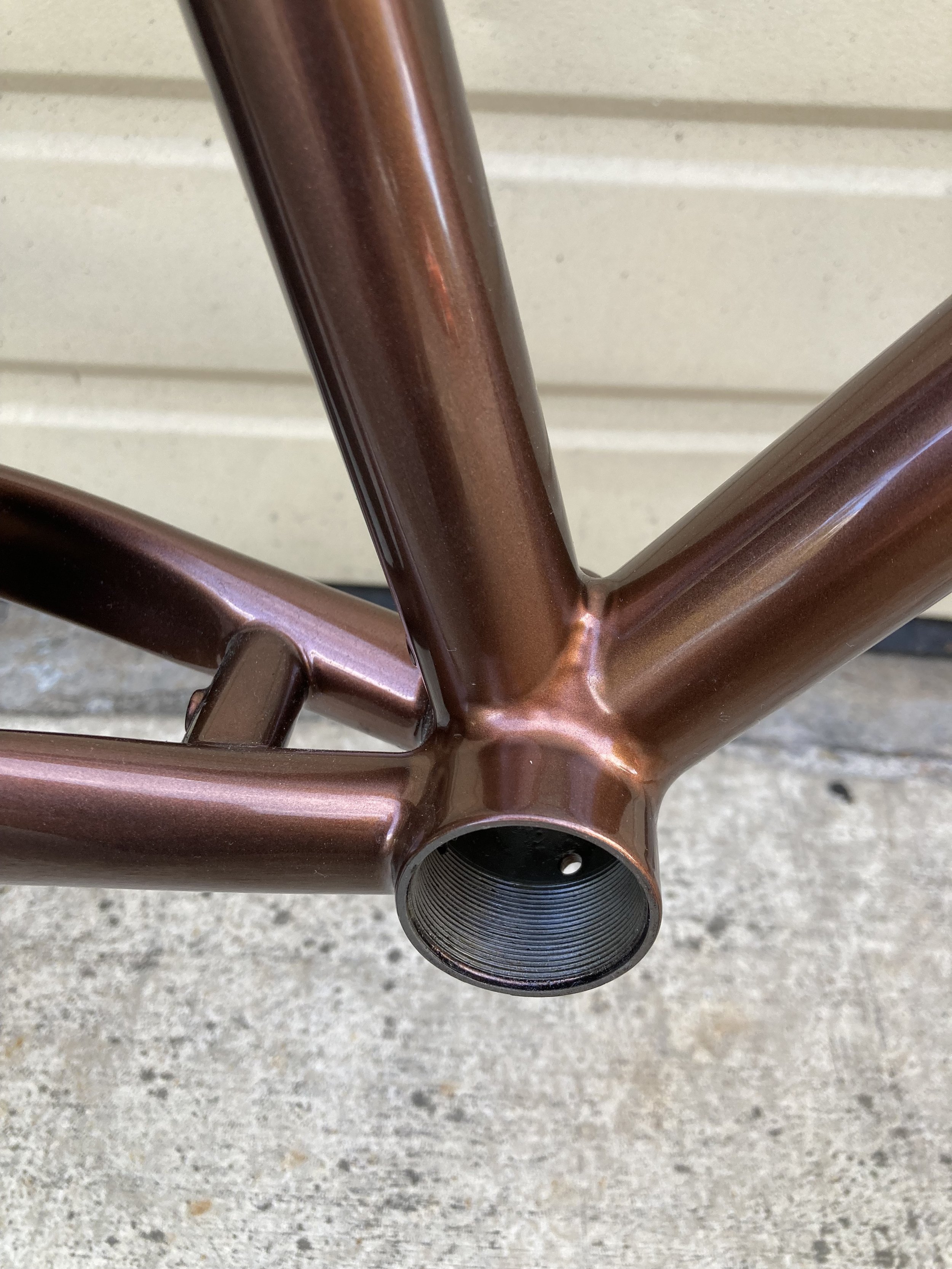

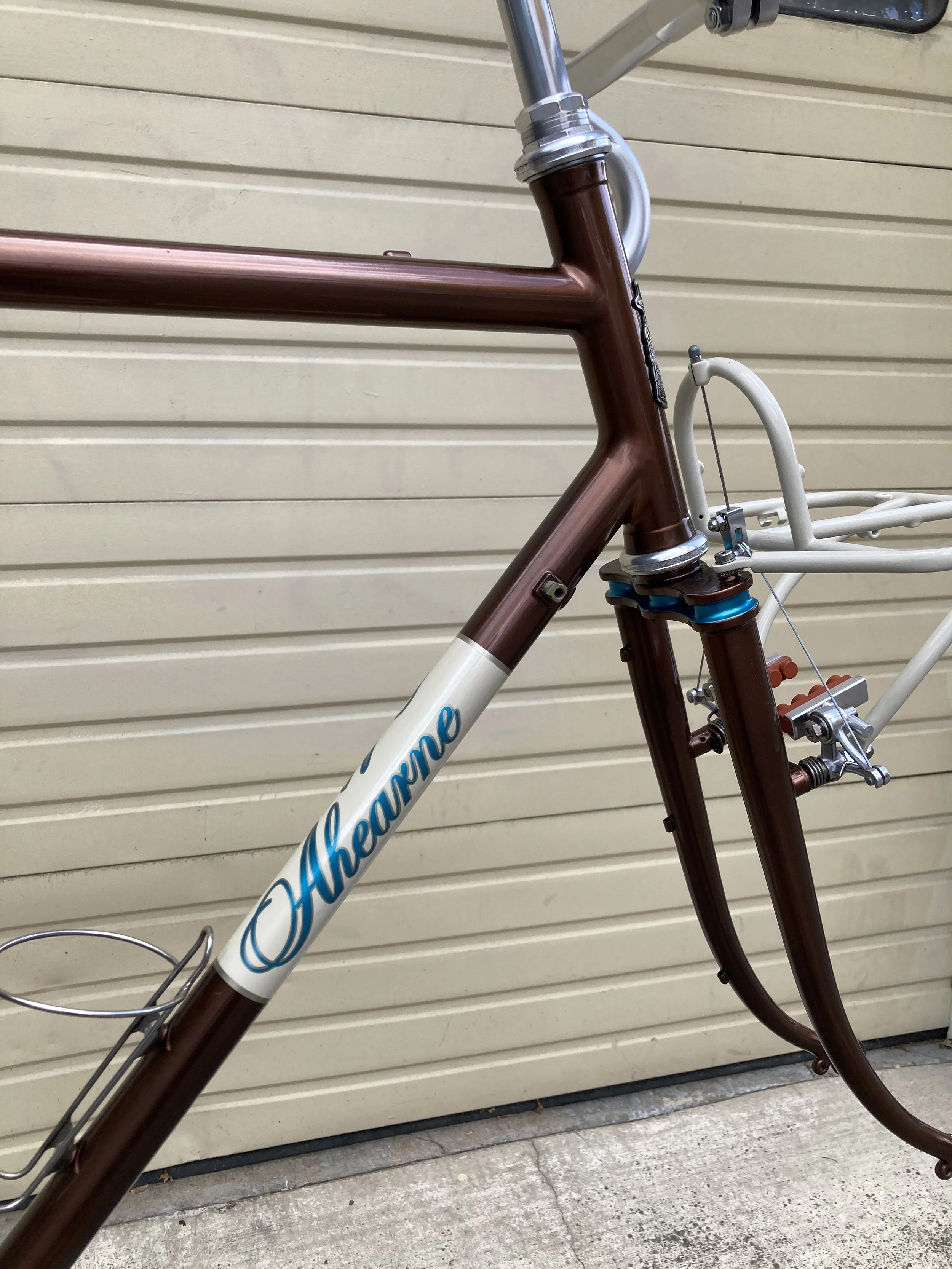

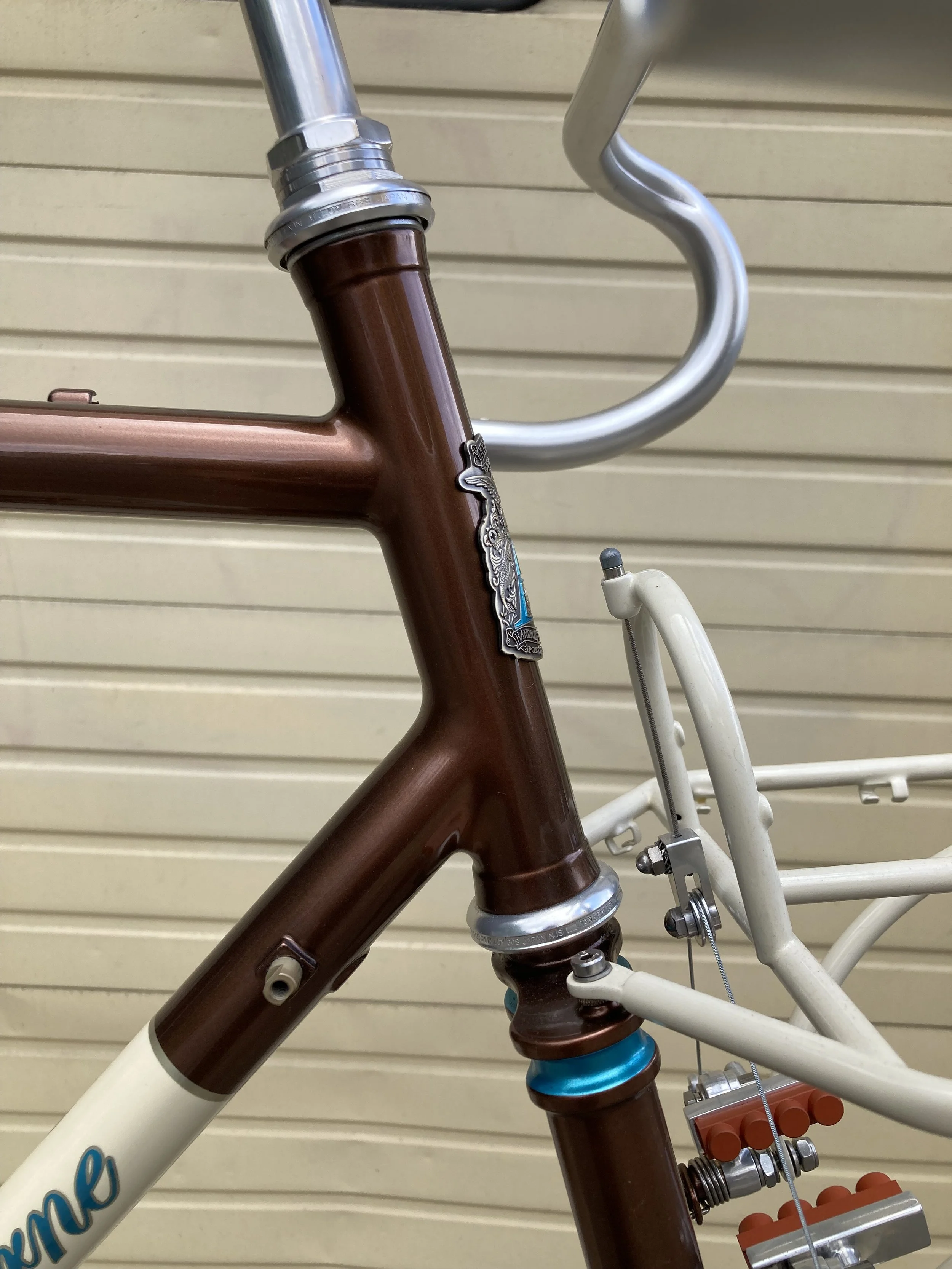

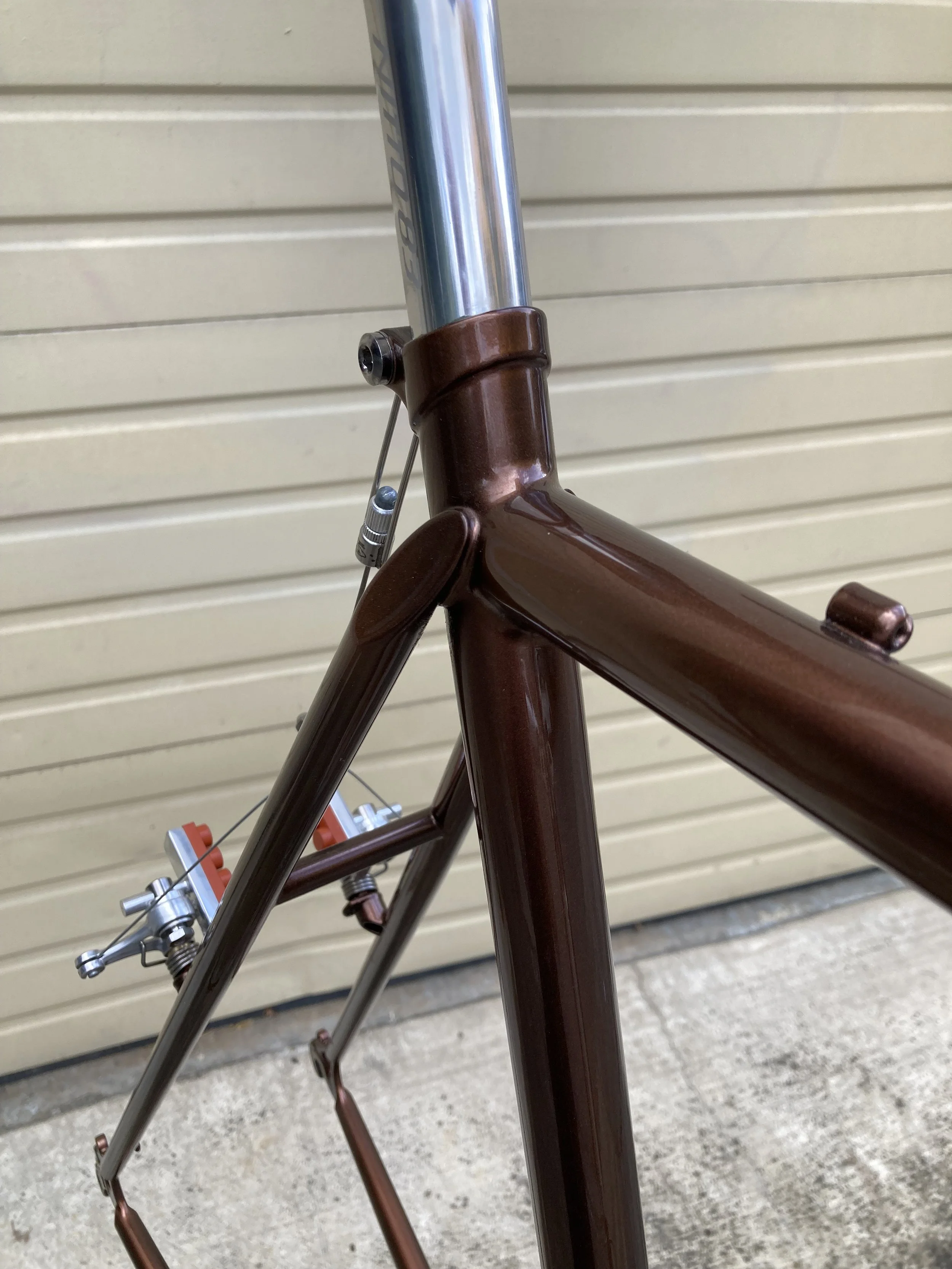

A super smooth fillet brazed frame made from True Temper tubing. This is an all-day riding bike that will fly down any road. Light, comfortable, fast.
Includes fillet brazed frame, split plate crown fork, hand-made front rack, and select parts (see the list below).
The frame is meant for 650b rim brake wheels with a minimum of 42c tires and has clearance for up to about 55c.
The rack has mounts for a small Wald basket, or pick your favorite bag. The rack also has a front light mount, wire routing, and a fender support.
The frame has a port to run the tail light wire internally.

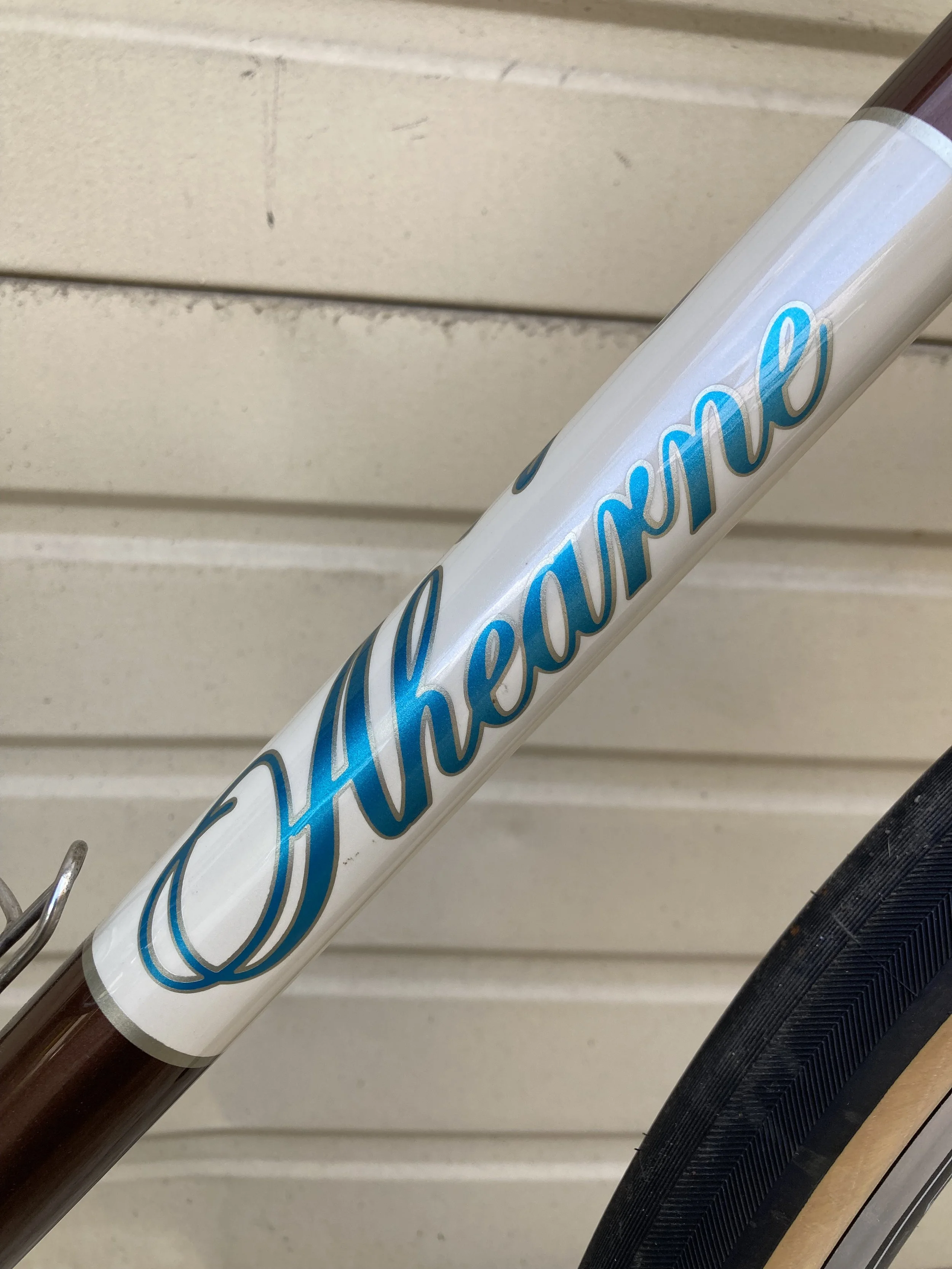

This is a powder coated bicycle, has a minimal sparkle in the deep brown, with a cream panel and matching rack, and aqua logo and fork crown fill. It’s very striking without being overdone.
Parts included with this frame are:
Herse cantilever brakes (new)
Tange 1” threaded headset (new)
Complete parts build available upon request. I have some things kicking around my workshop that would be perfect for a bike like this.

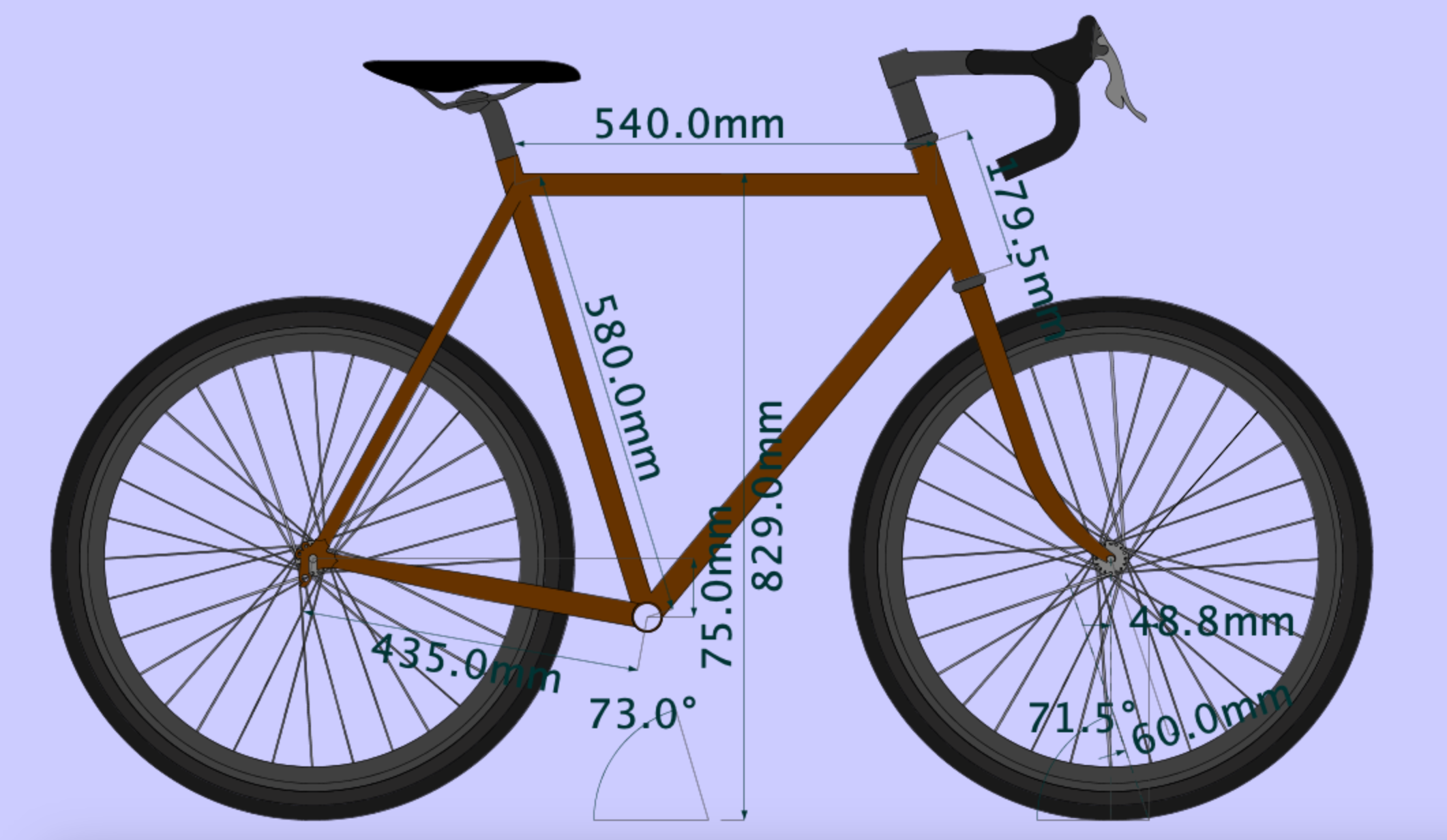

Frame Specs:
Top tube length: 54 cm
Seat tube (c to c): 58 cm
Standover: ~829 mm (with 42c tires)
Chain stay length: 435 mm
Head tube length: 179 mm
Head angle: 71.5 degrees
Seat angle: 73 degrees
BB drop: 75 mm
Fork offset: 60 mm
Intended wheel & tire size: 650b with minimum 42c tires

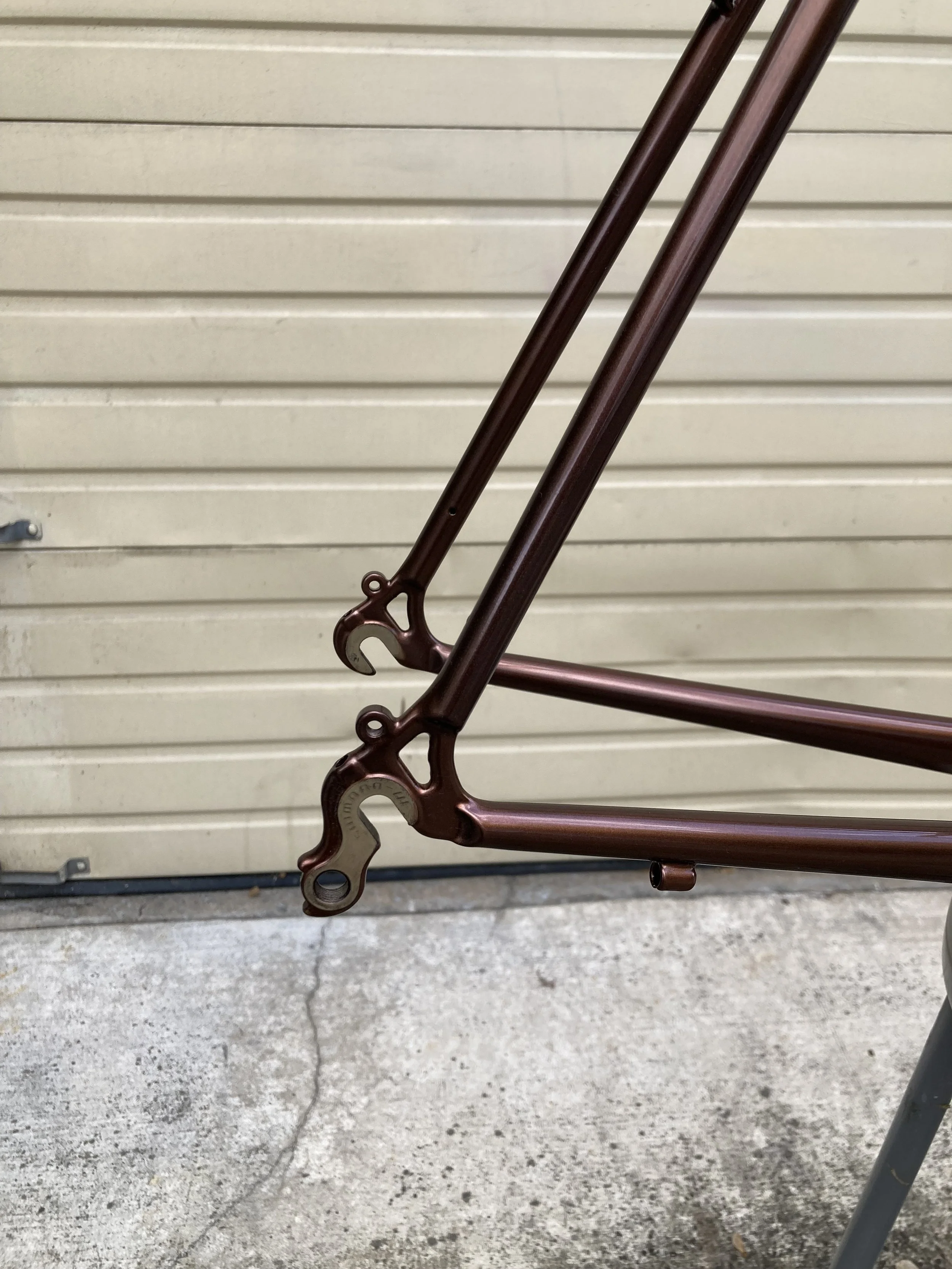

Rear dropout spacing: 130 mm
Please email me with questions, or if you’re ready to go: joseph@ahearnecycles.com
